Agibot A2 Lite

Price on request

MYBOTSHOP GmbH is a specialized supplier of professional robotics and automation components, providing high-quality hardware, expert support, and reliable solutions for research, education, and industrial development.

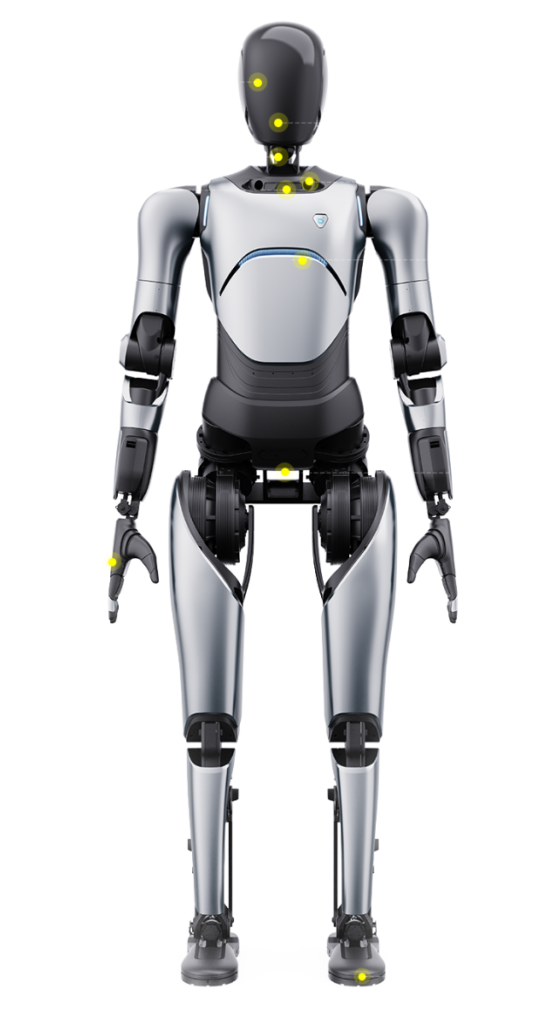

AGIBOT A2 Lite

AGIBOT A2 Lite is a full-size interactive humanoid designed for real-world service scenarios—reception,
guidance, exhibitions, and performances. It pairs a 23-DoF motion system with
quick-release power, fast charging, and Wi-Fi connectivity, enabling continuous daily operation and
scalable fleet management via OTA updates and swarm control.

Full Hardware Specs
Official Video
Official A2 Lite Page
A2 Ultra / A2 Lite Spec Table

Size169 cm tall • 169×75×30 cm

Mobility270 N·m peak knee torque • 6 DoF/leg

Payload≈2 kg max arm load

Power14.4 Ah quick-release • ~2 h walking (published)

Sources: official A2 Lite page + A2 Ultra/A2 Lite spec table. :contentReference[oaicite:0]{index=0}

Highlights

Built for public interaction: supports configurable expressions, movements, and action sequences.
Deployment-friendly energy: hot-swappable battery + fast charging for continuous operation.
Reliable joint stack: industrial-grade crossed roller bearings, dual encoders, and local fan cooling.
Enterprise-ready control: OTA upgrades and swarm control software for multi-robot deployments.

Technical Hardware Specifications

Main unit

Model	A2 Lite
Dimensions (H × W × L)	169 cm × 75 cm × 30 cm :contentReference[oaicite:1]{index=1}
Weight (incl. battery pack)	≈ 63 kg :contentReference[oaicite:2]{index=2}

Degrees of freedom

Total DoF (joint motors)	23 :contentReference[oaicite:3]{index=3}
Neck DoF	1 :contentReference[oaicite:4]{index=4}
DoF per arm	5 :contentReference[oaicite:5]{index=5}
DoF per leg	6 :contentReference[oaicite:6]{index=6}

Joint system

Joint output bearing	Industrial-grade crossed roller bearing (high precision, high load capacity) :contentReference[oaicite:7]{index=7}
Core joint motor	Low-inertia, high-speed inner rotor permanent magnet synchronous motor :contentReference[oaicite:8]{index=8}
Joint encoder	Dual encoders :contentReference[oaicite:9]{index=9}
Cooling system	Local fan cooling :contentReference[oaicite:10]{index=10}
Peak knee joint torque	270 N·m :contentReference[oaicite:11]{index=11}
Joint motion range (knee)	-2° to 99° :contentReference[oaicite:12]{index=12}

Perception & interaction (as listed)

Communication	Wi-Fi :contentReference[oaicite:13]{index=13}
Speaker	5 W (listed) :contentReference[oaicite:14]{index=14}
Handheld remote controller	Equipped :contentReference[oaicite:15]{index=15}

Performance

Max speed	Max 0.8 m/s; typical ≤ 0.6 m/s :contentReference[oaicite:16]{index=16}
Max arm load	≈ 2 kg :contentReference[oaicite:17]{index=17}

Power & energy

Battery (quick release)	14.4 Ah; 13-series lithium battery :contentReference[oaicite:18]{index=18}
Battery life (published)	Standing ~4.5 h; walking ~2 h :contentReference[oaicite:19]{index=19}
Charging time	~2 h :contentReference[oaicite:20]{index=20}
Charger output	54.6 V, 8 A (table); charger is also listed as 54 V, 10 A on the A2 Lite page :contentReference[oaicite:21]{index=21}
Power supply modes	Fast charging & hot-swappable battery supported :contentReference[oaicite:22]{index=22}

Compute & software

Compute	14-core high-performance CPU (A2 Lite page) / 16-core high-performance CPU (spec table) :contentReference[oaicite:23]{index=23}
Smart OTA upgrade	Equipped / Yes :contentReference[oaicite:24]{index=24}
Swarm control software	Supported :contentReference[oaicite:25]{index=25}
Dance development	Supported :contentReference[oaicite:26]{index=26}

Note: AGIBOT publishes some parameters in multiple places (e.g., charger output and CPU core count).
Confirm the exact configuration and revision during quotation/procurement. :contentReference[oaicite:27]{index=27}

Typical applications

Reception, guidance, customer engagement, and Q&A
Exhibitions, brand activations, and staged performances
Multi-robot shows and coordinated fleet deployments
